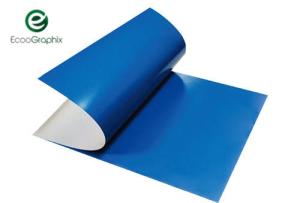

Long Runlength Thermal CTP Plate Two Layer Offset Printing Plate ECOO-ED
Long Runlength,UV ink compatible
1.Advantages
- Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions.
2.Specification
Model ECOO-ED
Plate Type Thermal CTP Plate, Double Layer
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Coating Two-layer system, IR sensitive, positive acting
Length of Run Ordinary Ink: 100,000 to 200,000 impressions UV Ink: 50,000 to 100,000 impressions
Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 110– 130 mj/ cm²
Developing time 25-30 sec
Spectral Sensitivity 800 – 850 nm – Peaks 830nm
Resolution 1-99% @ 200LPI
Image Color Blue
Developer Kodak Gold Star or our own developer
Processing temperature 23℃+/-2℃
Processing Speed 0.80 – 1.20 m/min
safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity
| General Information |
| Plate Model | ECOO-ED |
| Plate Type | Thermal UV-CTP Plate(Double Layer) |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Two-layer system, IR sensitive, positive acting |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Run | Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions |
| Exposing |
| CTP Plate Making Machine Plate setters | Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen : PT-R,Creo : Scitex
EcooGraphix Thermal CTP Tseries |
| Exposure energy | 110 - 130 mJ/cm² |
| Spectral Sensitivity | 800-850 nm – Peaks 830nm |
| Resolution | 1-99% at 200 LPI |
| FM capability | 20 micron stochastic |
| Image color | Blue Green to Pale Green |

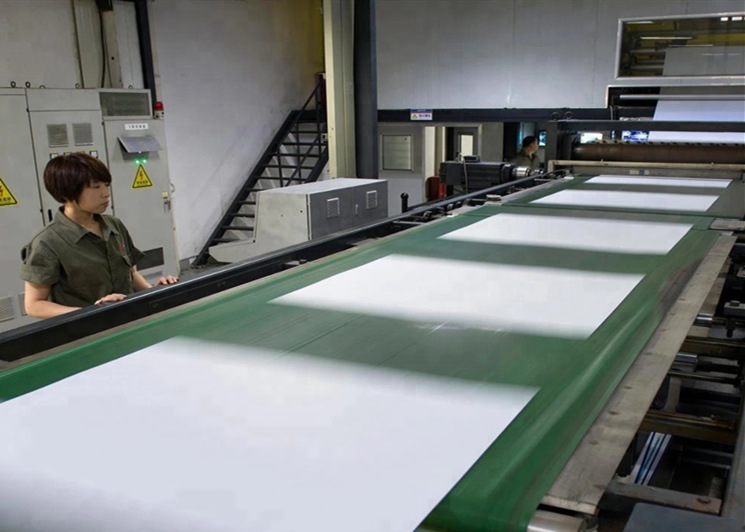

Our Production Lines and QC Department
From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .
Our Partner and Customers
FAQ:
Q1. What are your main products ?
EcooGraphix is a leading and professional Supplier for Prepress Solution , Printing Materials and Post Packing Equipment.
Q2: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q3: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q4: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q5: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
